Xiaomi 12S Ultra
by nasyiin

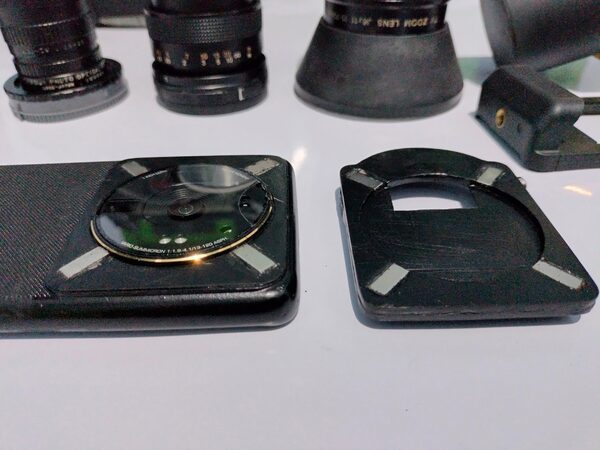

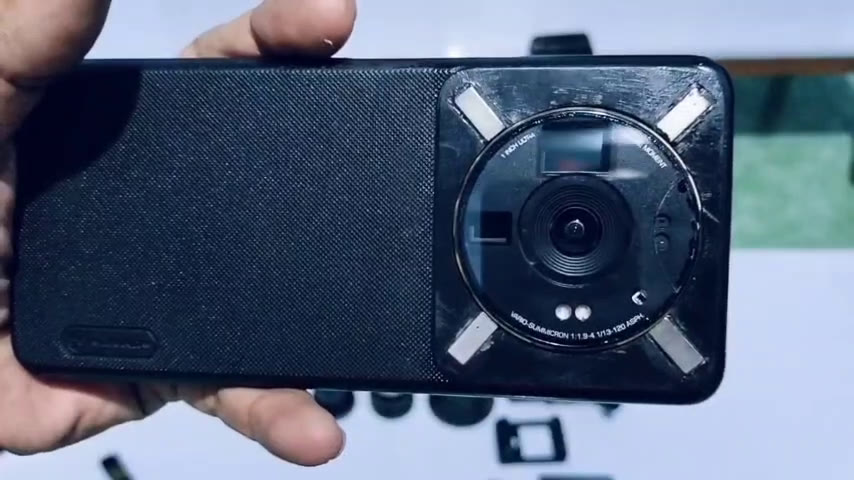

Getting a 17.5mm flange focal distance is a challenge in itself and requires an anti-rollback modification (unless you want to buy a complete backdoor and camera module to return to the original). The mount attaches with magnets, so the device stays fully usable as a regular phone.
Rooted, patched LSC, then root access was removed afterwards so banking apps still work.

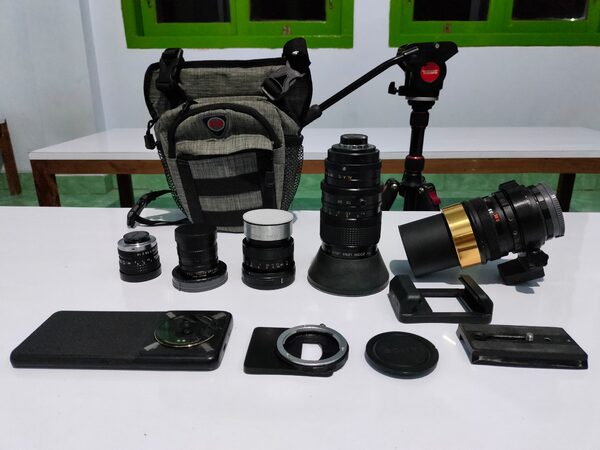

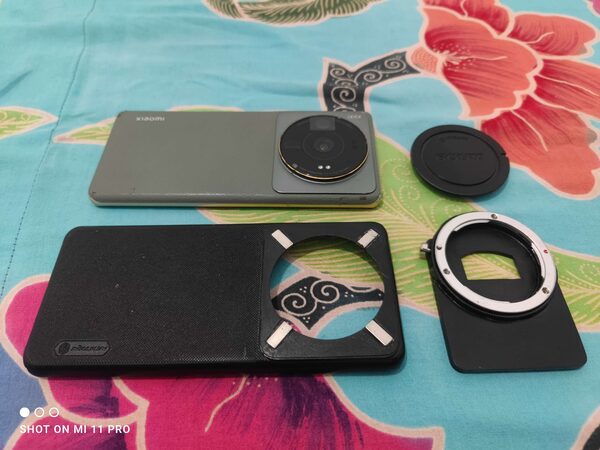

- Hard case (Nilikin)
- 2 camera protectors - one aluminum, the other plain/clear tempered glass
- Neodymium magnet (12x5x2)
- Sony E mount body - a Sony E macro extension tube plus a C to Sony E adapter
- A 2-4mm non-magnetic board (acrylic)
- Appropriate glue/adhesive
